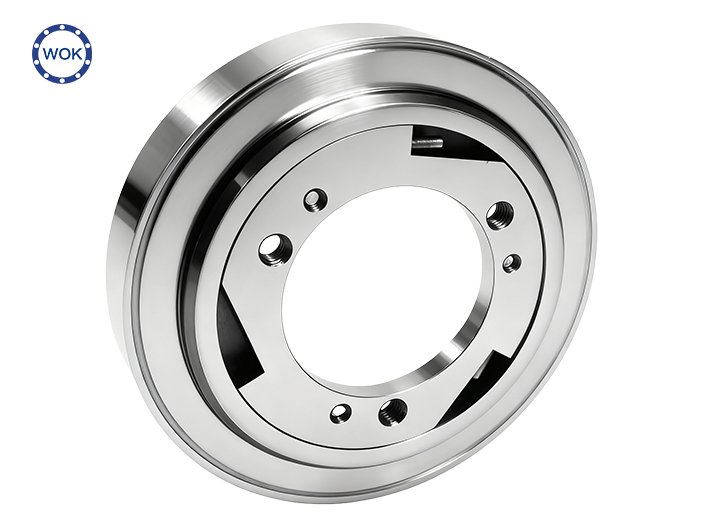

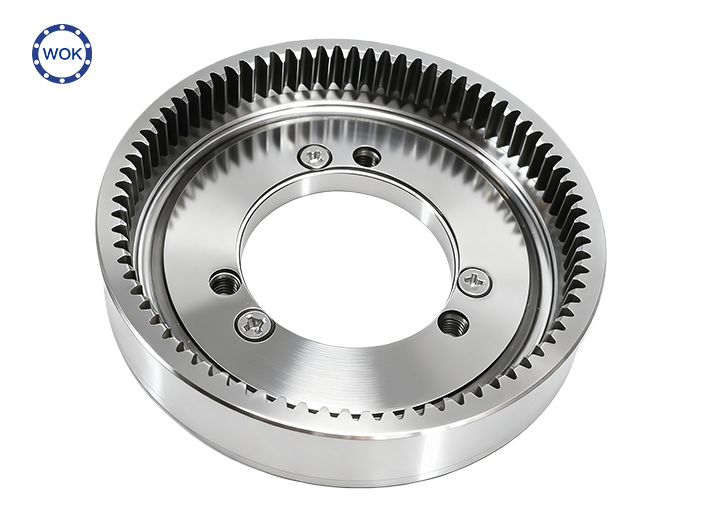

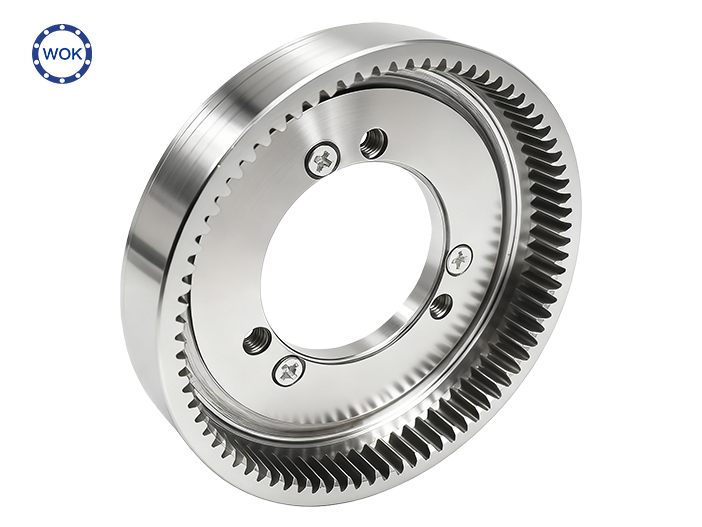

DLK087×20.5-39-X

Product description

This type of product is mainly used in electric bicycles equipped with inner rotor motors, and is independently developed and produced by our company. The use of the inner rotor motor clutch makes the dynamic balance better, improves the performance of the electric bicycle motor, and has the advantages of long service life, high temperature resistance, low noise, and more stable performance.

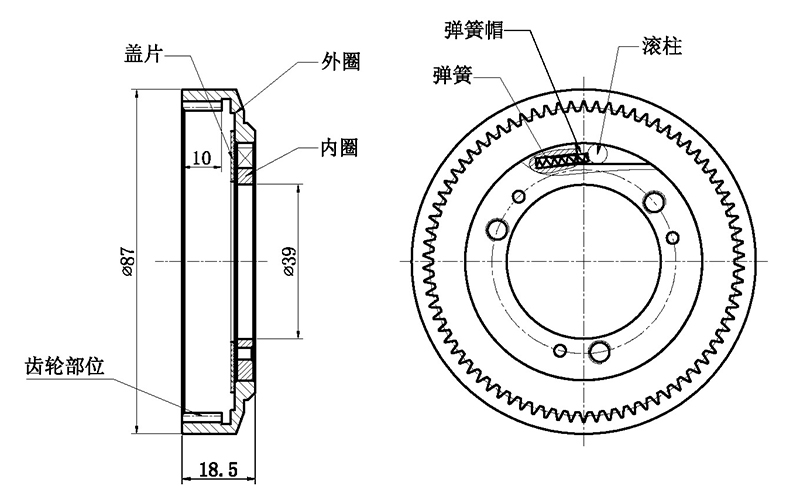

Technical requirements:

1. High-frequency quenching at the reference surface A, with a penetration depth of 1.5-2mm and a hardness of HRC58-62 in the penetration layer;

2. The workpiece should be free of defects such as burrs, flanging, cracks, and deformation; 3. The tooth profile of the gear needs to be chamfered, and the tooth surface should be polished
