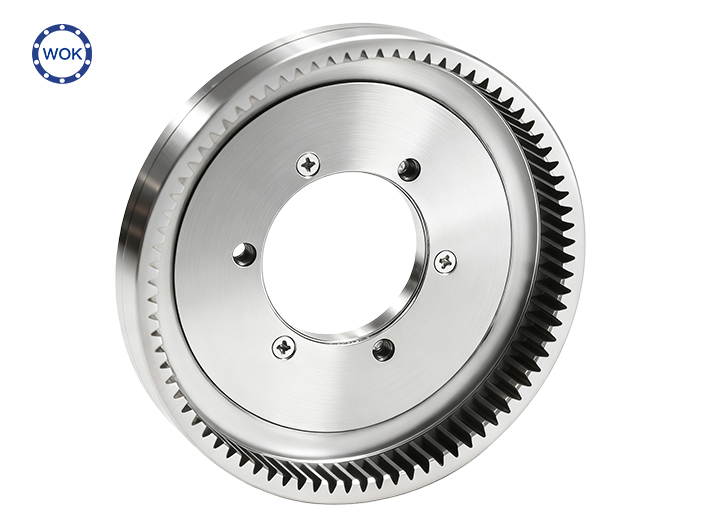

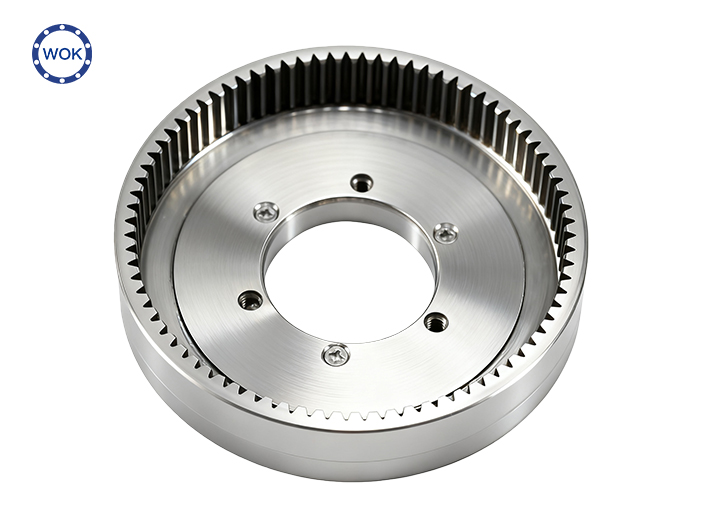

DLK110×21.5-40-Z81

Product description

This type of product is mainly used in electric bicycles equipped with inner rotor motors, and is independently developed and produced by our company. The use of the inner rotor motor clutch makes the dynamic balance better, improves the performance of the electric bicycle motor, and has the advantages of long service life, high temperature resistance, low noise, and more stable performance.

Technical Requirements:

1. The rated working torque is 80N · m, and the maximum torque is 350N. m.

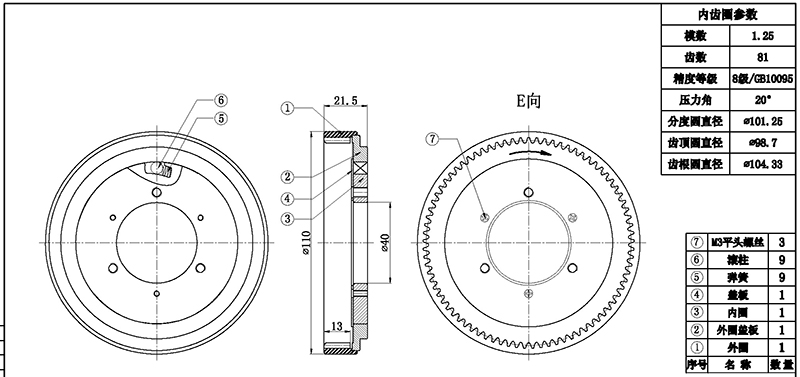

2. When facing the E direction, the inner ring is fixed and the outer ring rotates clockwise to lock the clutch and transmit torque

Moment.
