Home > Product > electric bicycle motor clutch > Electric bicycle inner rotor motor clutch
External Diameter：116
Brand：WOK
Place of Origin：China
Number of teeth：69
Machine Type：Electricbicycle
Minimum order quantity：≥2
Product Code：DLK116-Z69
E-mail：wokclutch@aliyun.com
| E-bike Inner Rotor Motor Clutch Technical Specifications Table | ||||||||
| Product Code | external diameter | Addendum diameter | Root circle diameter | Dividing circle diamerer | Number of teeth | Modulus | Pressure angle | Accuracy class |
| DLK077×22-25-X | 77 | 65.25 | 70.75 | 67.5 | 54 | 1.25 | 20° | 8GJ |
| DLK087×20.5-39-X | 87 | 76.3 | 81.1 | 78 | 78 | 1 | 20° | 8GJ |
| DLK94-Z63 | 94 | 61 | 65.5 | 63 | 63 | 1 | 20° | 8EG/GB1095 |
| DLK98-Z54 | 98 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK99-Z54 | 99 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK103.5-Z58 | 103.5 | 70 | 75.625 | 72.5 | 58 | 1.25 | 20° | 8-GB/T10095 |
| DLK110×21.5-40-Z81 | 110 | 98.7 | 104.33 | 101.25 | 81 | 1.25 | 20° | 8/GB10095 |
| DLK116-Z69 | 116 | 83.986 | 89.611 | 69 | 1.25 | 20° | GB10095-888GJ | |
| DLK124-Z60 | 124 | 86.85 | 93.6 | 90 | 60 | 1.5 | 20° | 8EG/GB1095 |
| DLK129-Z75 | 129 | 91.25 | 96.785 | 92.419 | 75 | 1.25 | 20° | JGMA 3 |
| 1. This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2. DLK116-Z69 Corresponding product model code：DLK116-Z69.A1.A2.A3 20220606 EM-06001 L-4.7-1 EMGER001 →(right rotation) | ||||||||
Product description

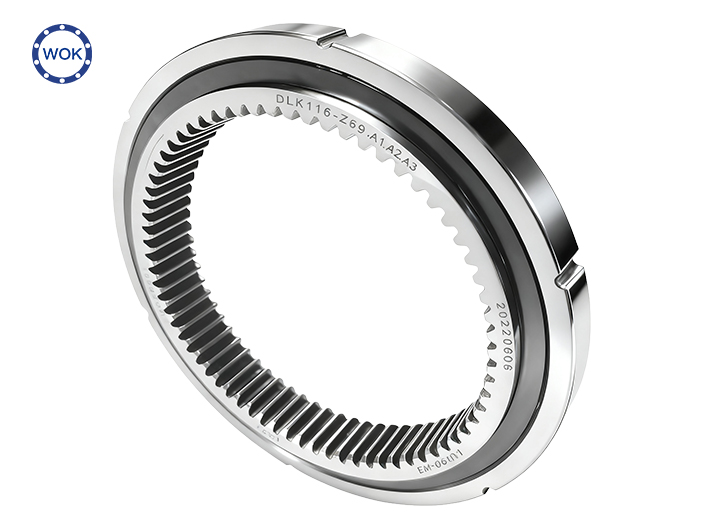

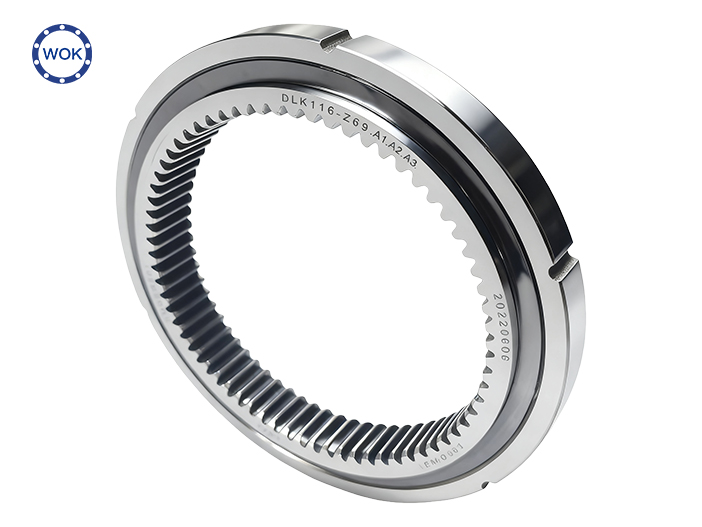

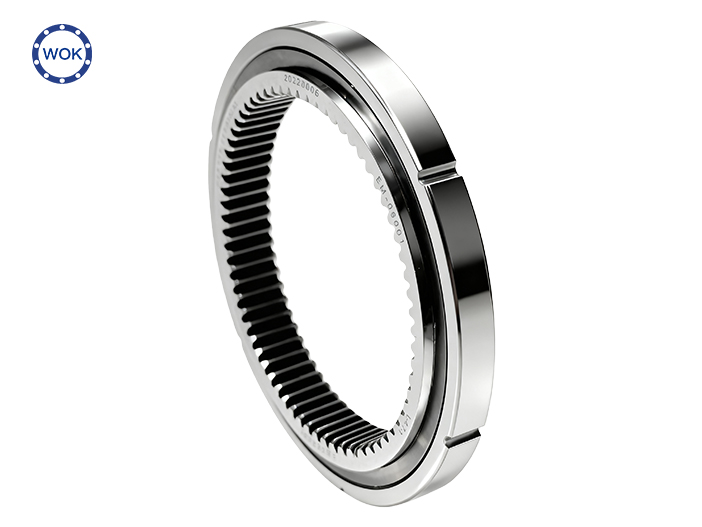

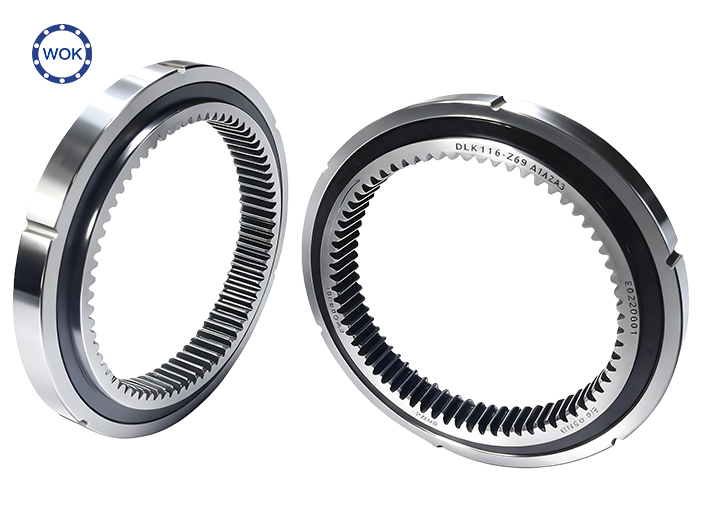

This one-way clutch is primarily used in electric bicycles equipped with internal rotor motors, and is independently developed and produced by our company. The use of this clutch rotor results in better dynamic balancing, enhancing the performance of the electric bicycle motor. It boasts advantages such as long service life, high temperature resistance, low noise, and more stable performance.
Technical parameter requirements:
1. The stopping torque is above 200N.m, and the rotational speed can reach above 300rpm;
2. Axial clearance is less than 0.05
