Home > Product > electric bicycle motor clutch > electric bicycle motor planetary gear clutch
External Diameter：72
Brand：WOK
Inner Diameter：12
Place of Origin：China
Machine Type：Electricbicycle
Minimum order quantity：≥2
Product Code：DGW23/DLK072-59.3-X
E-mail：wokclutch@aliyun.com

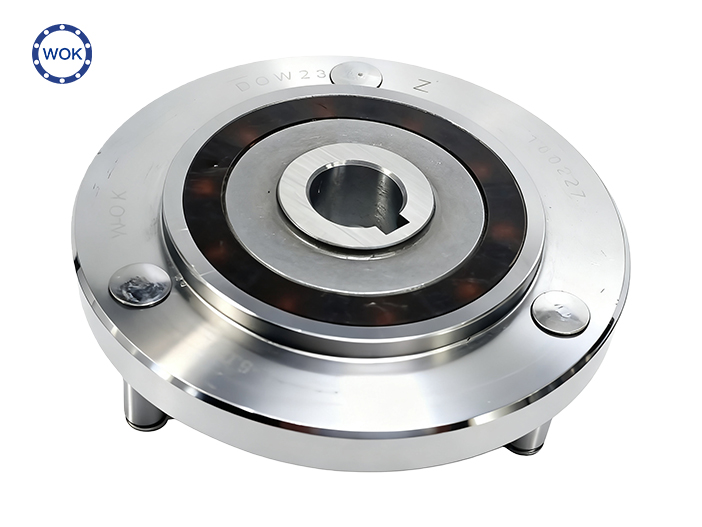

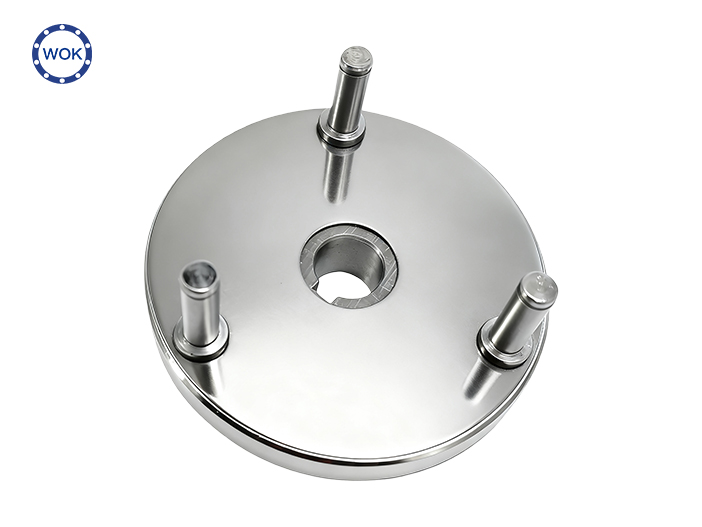

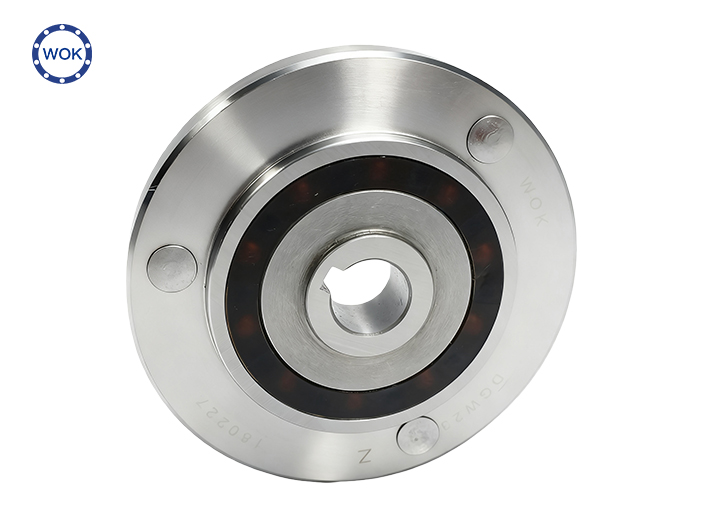

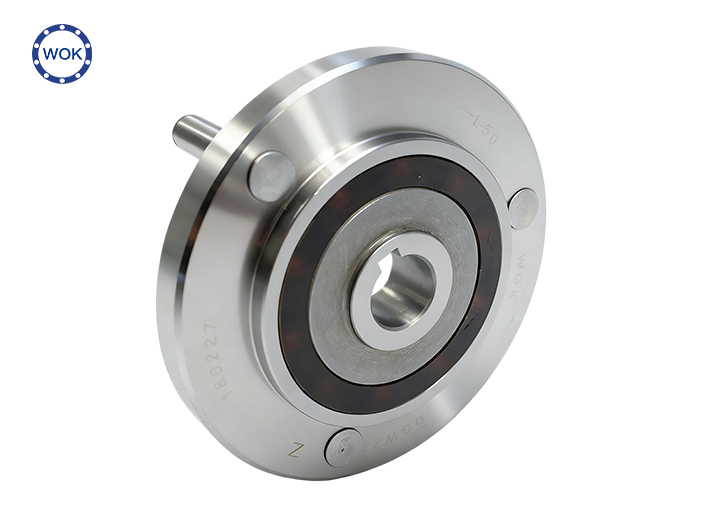

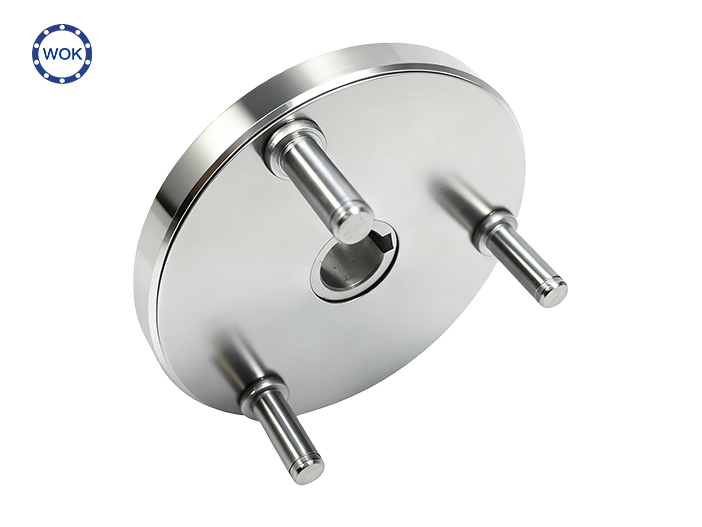

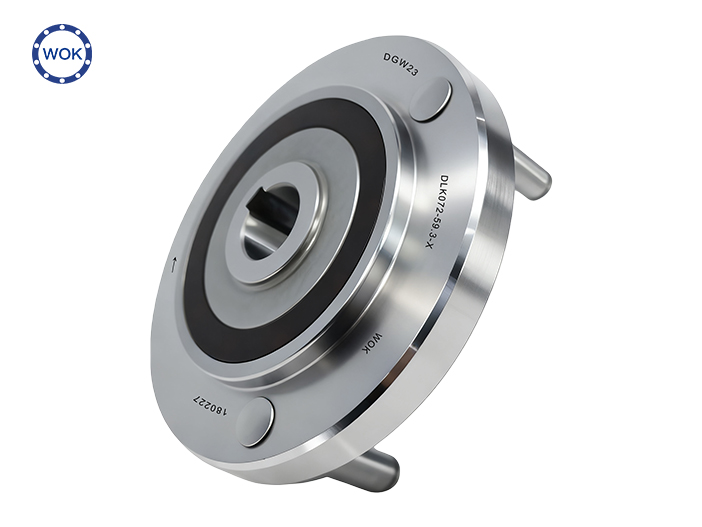

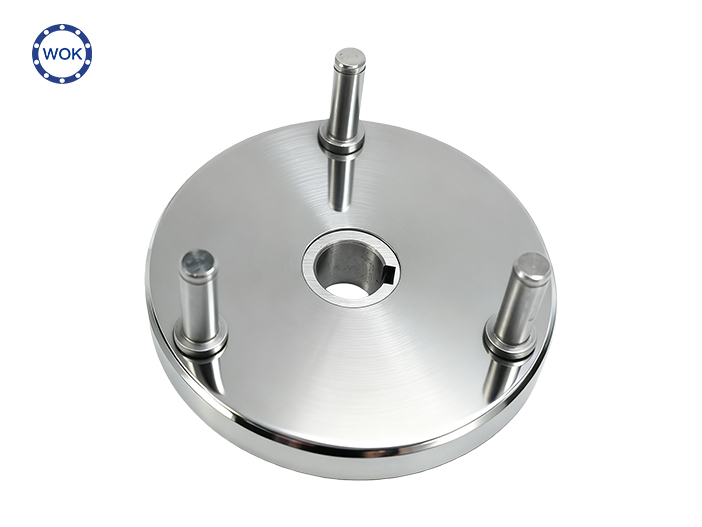

Electric bicycle small high-speed motor/wheel hub motor clutch DGW23

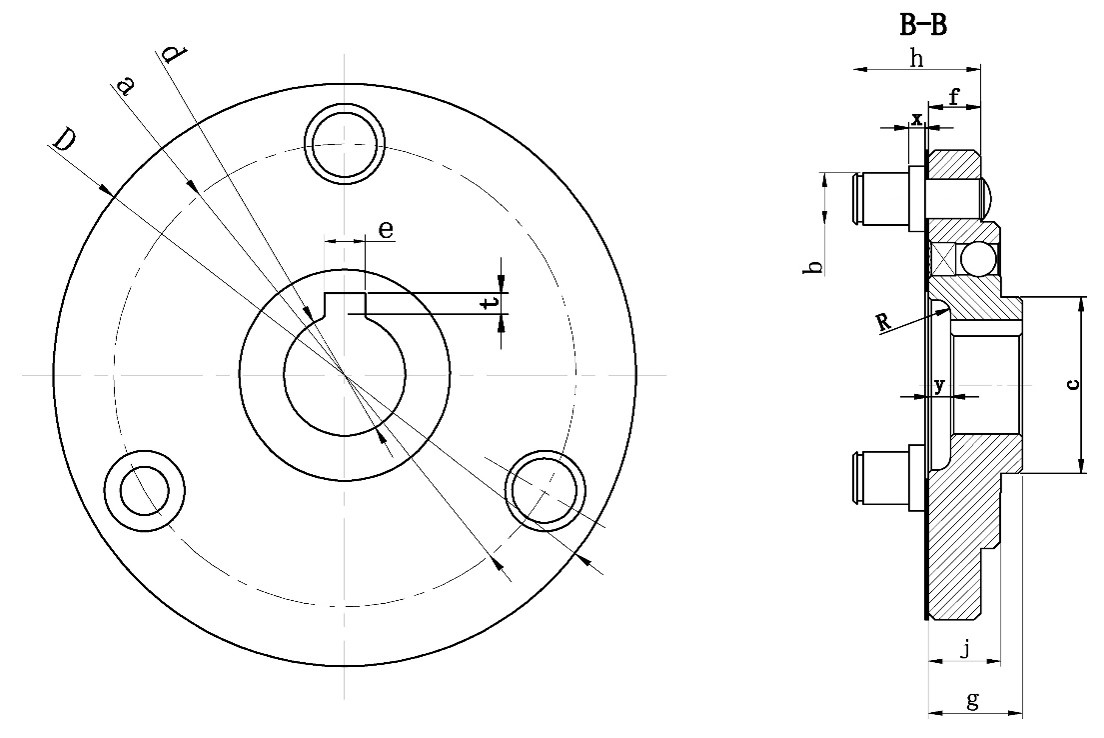

| DGW23 type small high-speed motor one-way clutch parameter table | |||||||
| Original factory model | Clutch parameter table | ||||||
| outer diameter (D) | inner diameter (d) | height (g) | Inner hole keyway (e×t) | Column diameter (b) | Column center distance (a) | torque (N.m) | |
| DGW23 | 72 | 12 | 31.8 | 4×1.8 | 6 | 59.1 | 120 |
| Product Introduction | This series of one-way clutches is primarily suitable for small high-speed motors in electric bicycles. The product features a roller structure, delivering high torque and long service life. | ||||||
