Home > Product > electric bicycle motor clutch > Electric bicycle inner rotor motor clutch
External Diameter：98
Brand：WOK
Place of Origin：China
Number of teeth：54
Machine Type：Electricbicycle
Minimum order quantity：≥2
Product Code：R0202/DLK98-Z54
E-mail：wokclutch@aliyun.com

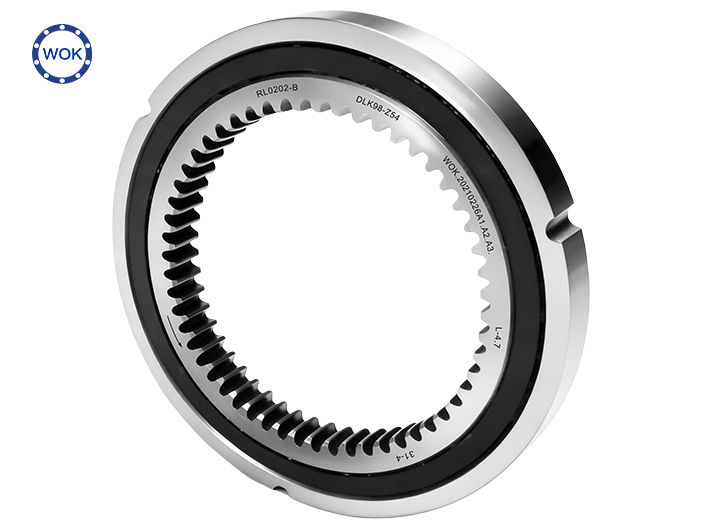

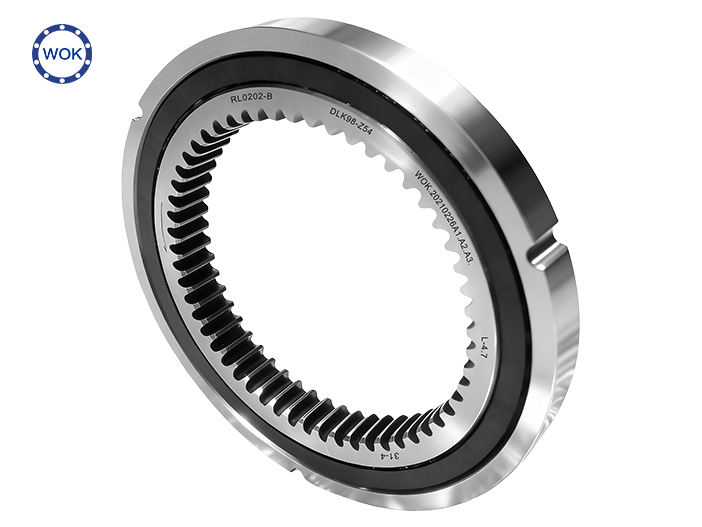

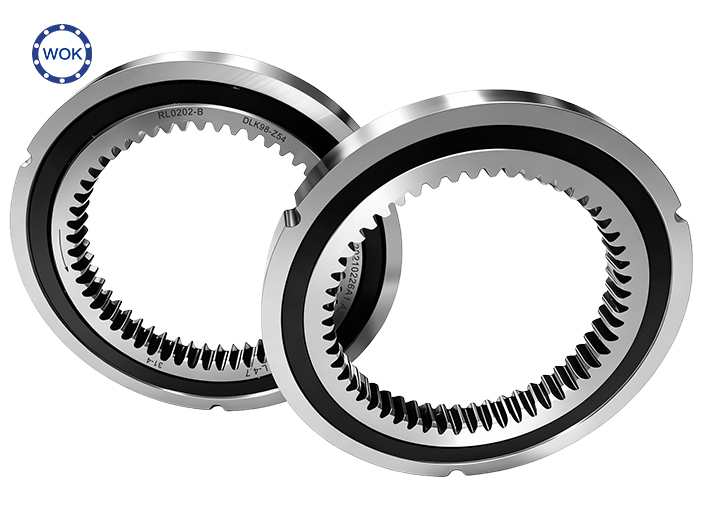

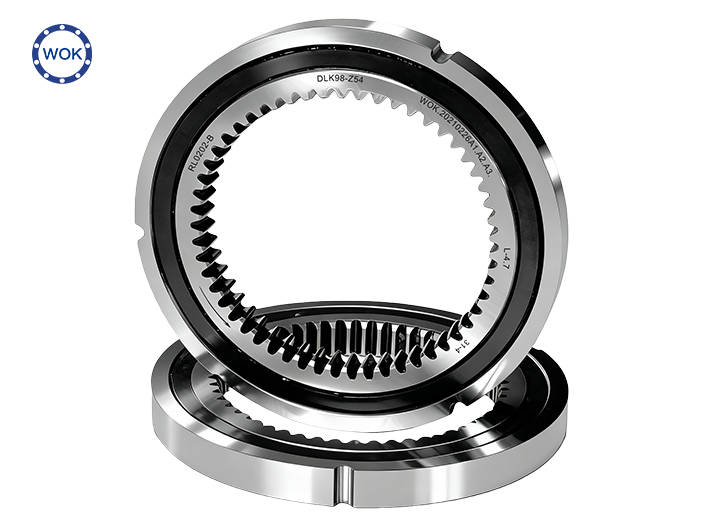

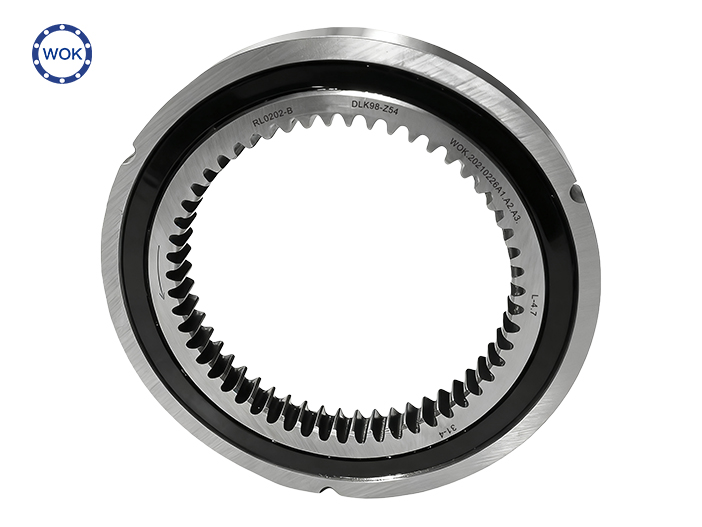

E-bike Inner Rotor Motor/Wheel hub motor clutch R0202/DLK98-Z54

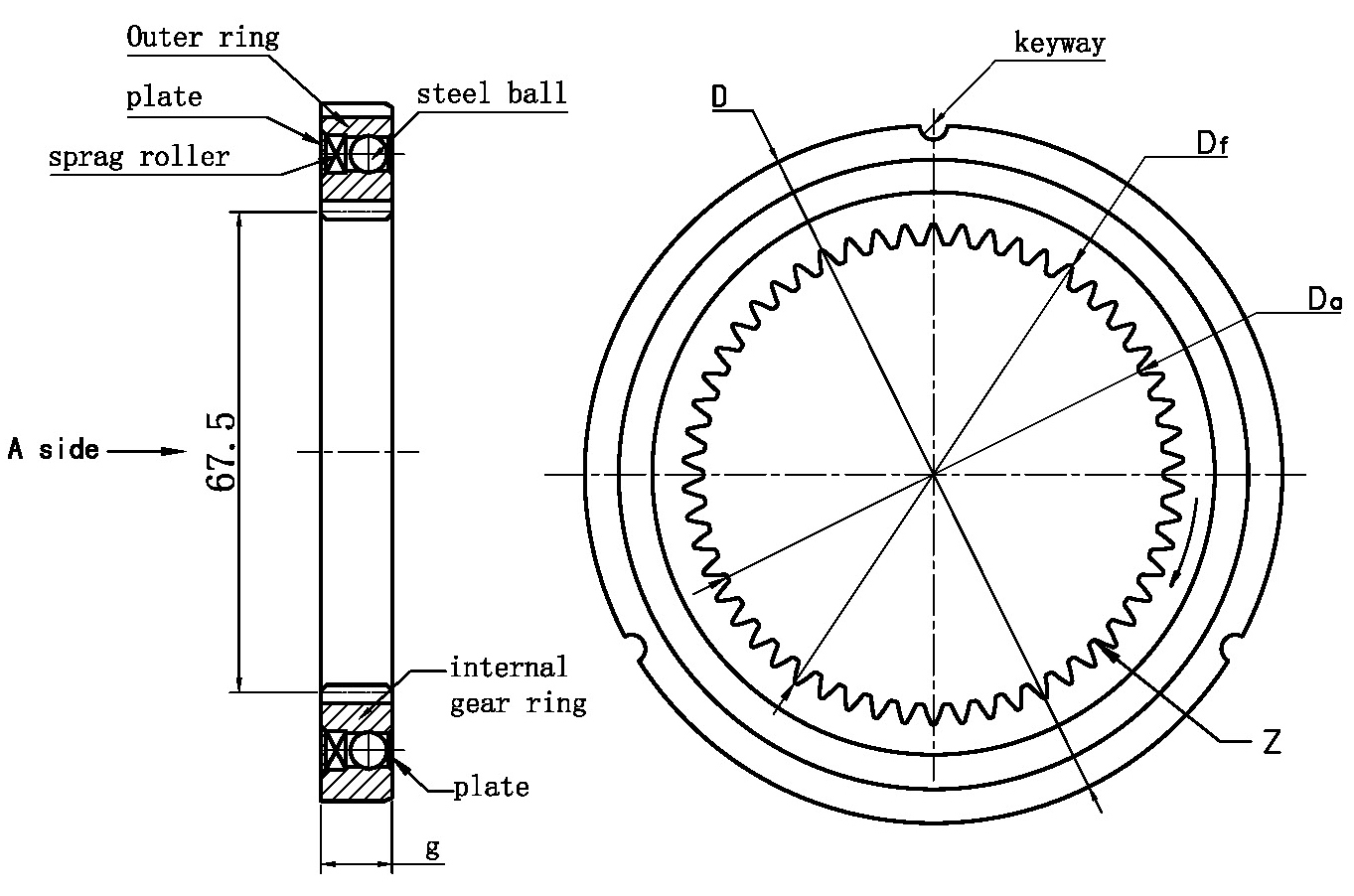

| R0202 Technical parameter table of internal rotor motor clutch | ||||||||
| Original factory model | Outer diameter (D) | Major diameter (Df) | Minor diameter (Da) | Height (g) | Gear module (m) | Number of teeth (Z) | Outer ring keyway | Torque (N.m) |
| R0202 | 98 | 70.62 | 65.35 | 10 | 1.25 | 54 | 3-R2 | 50 |
| Product Introduction | This one-way clutch is mainly applied to electric bicycles with inner rotor motors, independently developed and manufactured by our company. It incorporates bearing support, which can prevent axial and radial play, making gear transmission more stable, improving balancing performance, and thus enhancing the service performance of the electric bicycle motor. It boasts advantages such as a long service life, low noise, and more stable performance. | |||||||
